Understanding Bike Geometry
Bike geometry covers key measurements that shape how a bike rides and handles. These angles and lengths affect everything from stability to steering. Let’s break down the essentials and see how they influence your biking experience.

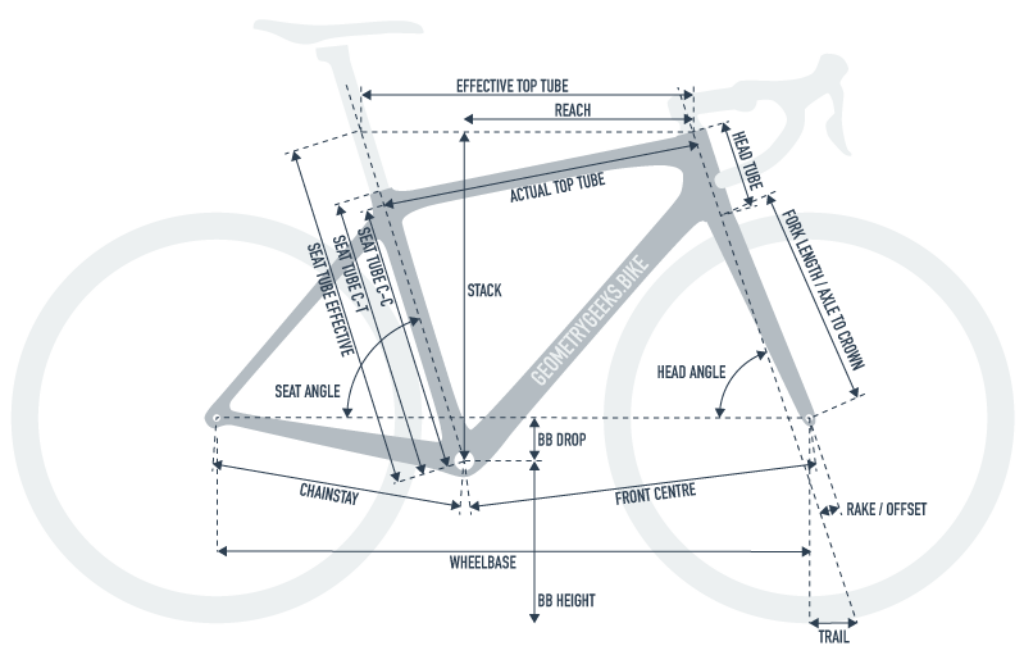

Key Measurements Explained
Bikes come with a set of nerdy-sounding measurements that can help you choose a cinnamon roll that rolls just right for you:
- Head Tube Angle: Steers the ship and keeps you steady.
- Seat Tube Angle: Decides how you sit and pedal on the bike.
- Chainstay Length: Impacts how glued the rear wheel feels and the bike’s taste for quick zigs or zags.
- Bottom Bracket Drop: Dictates your gravity game and balance.
- Stack and Reach: Vertical and horizontal distances that shape how you stretch or exist on the bike.
| Measurement | What They Do |
|---|---|
| Head Tube Angle | Shapes how pronto or mellow the bike steers. |
| Seat Tube Angle | Dictates comfort while you pedal. |
| Chainstay Length | It sets you lower or higher, affecting balance and obstacle hurdling. |
| Bottom Bracket Drop | Sits you lower or higher, affecting balance and obstacle hurdling. |
| Stack and Reach | Vertical (stack) and horizontal (reach) from the middle to the top, which can change comfort. |
Impact on Riding Characteristics
How your bike handles changes majorly with these measurements, and these little numbers can make or break performance goals (BikeRadar):
- Head Tube Angle: Sharp angles for quick, nimble turns on races, while laid-back angles fetch more control and ease on those wild downhill slopes.
- Seat Tube Angle: Steep gets you pedaling like a pro over pedals, and relaxed sits you more casually for a chill ride.
- Chainstay Length: Short is sweet for tight maneuvers and playful hops. Long means rock-solid speed demons that love to tour.
- Bottom Bracket Drop: Lower drops increase steadiness, but watch for bumps.
- Stack and Reach: More stack with less reach suggests a comfy seat for long rides, while low stack and big reach scream race-ready.
How a bike fits with how you want to roll is all in these details, guiding your choice from first wheels to upgraded rides. For deeper dips, dig into our guides on where to buy bikes online, how to test ride a bike, and figuring out bike frame size.
When you’re eyeing those shiny new models, it’s key to compare bike specs with your riding vibes. Feeling perplexed by choice? Our bike size calculator might be the buddy you need to hit that sweet spot.
Remember, geometry isn’t just math – it’s the soul of your ride. Safe and happy trails!
Factors Influencing Road Bike Handling
Want to know what makes a road bike feel just right when you hit the pavement? It’s all about its geometry, folks. Two big honchos in this game are the head tube angle and the wheelbase. Wrapping your head around these can turn a clueless shopper into a savvy bike buyer in no time.
Head Tube Angle and Wheelbase
The head tube angle might sound like bike jargon, but it’s crucial. It’s the tilt of your bike’s head tube and tells your bike how to steer. Do a steep head tube angle? Your bike’s gonna dart around like a bee on Red Bull, perfect for racing or when you need to zip through traffic. Prefer a laid-back cruise? A slacker angle’s got you covered with calm, steady handling.
Now, let’s talk wheelbase, the invisible line between your front and back wheels. Stretch it out, and you’re rolling with stability, great for high-speed sprints or bumpy roads. A snug wheelbase? You’ll weave through tight spots like a squirrel in a park.
| Measurement | Impact |
|---|---|
| Head Tube Angle | Steeper = quicker steering; Slacker = steadier ride |
| Wheelbase | Longer = stability champ; Shorter = nimble ninja |
Differentiating Race Bikes and Endurance Bikes
Race bikes and endurance bikes might seem like two wheels and a frame to some, but they’re built with distinct goals in mind. Knowing these differences helps you pick the right companion for your ride style.
Race Bikes
Need speed? Race bikes are your ticket to zippy town! With a steep head tube angle and tidy wheelbase, they’re all about speed and precision. This aggressive setup tilts you into an aerodynamic posture that’s perfect for racing past your buddies or the competition.
Endurance Bikes
If you’re in it for the long haul, endurance bikes are your comfy clouds on wheels. Their gentler head tube angle and stretched wheelbase mean you can sit back, relax, and soak up those long rides. They relieve the stress on your back and neck, making them your best pal for casual outings or daily commutes.
| Bike Type | Head Tube Angle | Wheelbase | Ideal For |
|---|---|---|---|
| Race Bikes | Steep | Short | Speed demons, tight corner tackling |
| Endurance Bikes | Slack | Long | All-day comfort, leisurely jaunts |
Do you have more questions before you settle on your new set of wheels? Check out our guides on bike frame sizing and comparing bike specs. And if your wallet’s getting a workout, our bike financing guide and bike price tracking pages are here to help.
Mountain Bike Geometry Trends
Lately, mountain bikes seem to be getting a facelift, and it’s not just about flashy colors or slick decals. There’s a genuine shift in how these two-wheelers are designed to boost performance, make rides comfier, and boost handling skills. Let’s break down two big game-changers: those steep seat tube angles that make climbing feel like a breeze and the long, low, and slack style for conquering trails with ease.
Steep Seat Tube Angles for Climbing
If you’re into scaling uphill like it ain’t no thang, steep seat tube angles are your new best friend. These angles get riders positioned better, with weight just right for holding that front wheel down as you climb. You won’t be popping wheelies unless you want to (wink wink). According to the geometry wizards at Geometry Geeks, the sweet spot for steeper seat tubes means more traction and control when your trail demands it.
| Bike Model | Effective Seat Tube Angle (Degrees) |
|---|---|
| Model A | 75 |
| Model B | 76 |
| Model C | 77 |
Essential for those thrill-seekers eyeing uphill performance, these angles turn climbs from a grind to a groove. Ready to make a purchase? Take a peek at our handy bike price guide or figure out your first (or next) bike stop at our where to buy bikes section.
Long, Low, and Slack Designs
With Enduro races skyrocketing in popularity, mountain bikes are stretching out and dropping low, kind of like that limbo party game you played at summer camp. (Bonus: no awkward party hats here.) These bikes flexing the long, low, slack look are just made for downhill bragging rights. Here’s how it works:
- Long: A longer reach and wheelbase means you’re gliding like a pro at those top-notch speeds.
- Low: Lowering the bottom bracket height serves up some sweet stability—like your bike’s giving you a hug.
- Slack: A slacker head tube angle? It’s like giving your front end a margarita—laid-back and smooth, even on rough bits.
| Bike Model | Head Tube Angle (Degrees) | Wheelbase (mm) | Bottom Bracket Height (mm) |
|---|---|---|---|
| Model X | 65 | 1220 | 340 |
| Model Y | 64.5 | 1240 | 335 |
| Model Z | 63 | 1260 | 330 |
These rides have got your back as you tackle dicey descents, making speedy rides more than just a wild wish. Craving more info? Check out our compare bike specs and bike frame sizing guides.
Wrapping your head around these trends means you’ll be picking rides that don’t just feel good—they make sense. Up your game with our insights on how to test ride a bike and decide between new vs used bike options to nail that perfect match.
Role of Reach in Bike Geometry
Trying to make sense of how a bike fits or feels? You’re not alone. Reach, a key player in bike geometry is the horizontal distance from the middle of the bottom bracket to the top center of the head tube. Sounds technical, right? But it’s pretty important. This little measurement can turn your ride from feeling like a magic carpet to a clunky old van. It shapes how comfy you are and how fast you can whiz by your friends.
Reach and Bar Width
Reach doesn’t work alone – it’s got a sidekick: handlebar width. Think of it as Batman and Robin. Together, they determine how your bike behaves. Mountain bikers, for instance, are in longer reach with shorter stems and wider bars. What does that do? Well, you get a bike that’s rock solid at speed and just right when dodging trees.
| Reach (mm) | Bar Width (mm) | Rider Feel |
|---|---|---|
| Short (<400) | Narrow (<680) | Swift moves, a little shaky whew at high speed |
| Medium (400-450) | Medium (680-740) | Just right blend of nimbleness and stableness |
| Long (>450) | Wide (>740) | Bullet train vibes – steady and smooth |
Switching to wider bars? Expect things to feel a bit different, like switching from tap dancing to hip-hop. Try test-riding it or easing into the change – your senses will tell you what’s best.
Impact of Stem Length
Now, let’s talk about stem length. It’s like the secret sauce — impacts reach and steers how the bike feels. Shove a 10mm spacer under the stem, and voilà, you’ve squished the reach by 3-4mm. Math, but it’s cool. Short stems plus long reaches? They’re the dynamite duo for snappy steering and stability in tough terrains.
| Stem Length (mm) | Impact on Reach | Rider Experience |
|---|---|---|
| Short (<50) | Little More Reach | Zippy moves, firm on its feet |
| Medium (50-90) | Neutral | Jack-of-all-trades |
| Long (>90) | Shorter Reach | Less whipping around, stretched-out feel |
Fiddling with stem length can really switch up your ride. Playing around with reach and stem length might just unlock your dream ride.
Don’t just eyeball your fit – whip out a bike size calculator and heck, compare bike specs too. Getting it right can be the difference between “meh” and “OH YEAH!” when you’re cycling.
Importance of Trail in Bike Design
For those diving into bike geometry, the trail is the secret sauce that flavors how a bike handles and steers. If you wanna know why your bike feels like a trusty old friend or a jittery squirrel, look no further than a trail.
Trail for Stability vs Responsiveness
Trails like the invisible string connecting your front wheel to its superhero steering axis—a bike whisperer, if you will. This magical measure can either turn your ride into a majestic ship navigating through chaos or a zippy cheetah darting through the urban jungle.
- High Trail: Bikes with high trails are like the steady captains of the bike world. Perfect for high-speed slides down mountainous terrains like you’re an Enduro or downhill daredevil. They achieve this Zen-like stability by tweaking the head tube angle, shortening the fork offset, or upping the wheel size.
- Low Trail: On the flip side, bikes with low trails are as nimble as a ballerina on wheels. Perfect for city escapades and dodging traffic like a pro. Make this agile creature by steepening the head tube angle, elongating the fork offset, or trimming wheel size.
Achieving Optimal Trail Figures
Getting the right trail is like finding the perfect recipe—depends on what you’re hungry for. Here’s how the dishes stack up:
| Trail Category | Trail (mm) | Flavor Profile |
|---|---|---|
| Extremely High | >80 | Extra-stable, king of mountain knights |
| High | 65 – 80 | Solid rock in rough rapids |
| Mid | 45 – 65 | Jack-of-all-trades, ready-for-anything |
| Low | 30 – 45 | Quick, sharp, city conqueror |
Just like the quest for balance on a high wire, achieving the right trail is a balancing act between stability and the agility of a ninja warrior. Breathe life into your two-wheeled steed by tweaking:
- Slackening Head Tube Angle: Make the head tube chill, beefing up the trail for a stable beast that tackles rough terrain with ease.
- Increasing Fork Offset: Stretch out that fork, cutting down the trail for a spry, responsive ride, ideal for the asphalt jungle.
Set your wheels in motion with the finely-tuned trail, and you’ll avoid hiccups like that pesky toe overlap on smaller frames.
Whether you’re a newbie, upgrading, or someone seeking the spice of life on two wheels, understanding the trail leads to sweet, satisfying choices. Aim for the woods or the bustling streets—you decide. To sketch out more of your biking journey, check out bike frame sizing, or compare options with our bike brands comparison for a ride that feels just right.
Gravel Bike Stability Factors
Gravel bikes are, simply put, the SUVs of the cycling world. Whether you’re cruising over loose gravel or maneuvering through city streets, these bikes keep you steady and comfy. Let’s break down what makes these versatile machines so dependable for newcomers, upgrade enthusiasts, or anyone wanting to squeeze the most fun out of their ride.
Fork Rake and Trail
Think of fork rake and trail like the bike’s steering menu. Fork rake is how much space there is between the front axle and the steering line, while trail measures the distance between where your front tire hits the dirt and where the steering line hits the ground.
| Factor | What it Means for Your Ride |
|---|---|
| Fork Rake | More rake = Faster turns |
| Trail | More trail = Better straight-line cruise |
According to the gear gurus over at Tekne Cycling, some gravel bikes come with a neat adjustable axle trick, letting you tweak the fork rake for the best fit, no matter the trail conditions.
Wheelbase and Bottom Bracket Height
The length and height of your ride’s frame are critical for mastering bumpy terrain and speedy sprints. The wheelbase, the span between your wheels, offers a balance between swift maneuvering and rock-solid stability. Meanwhile, the bottom bracket’s height—basically, how high your pedals sit from the ground—affects how balanced and sturdy you feel, especially when things get rough.
| Factor | Handling Impact |
|---|---|
| Wheelbase | Longer wheelbase = Smoother sailing at speed |
| Bottom Bracket Height | Lower height = Better balance = More courage on tricky paths |
Depending on where you want to take your cycling adventures, you might find yourself tweaking these settings. Need a helping hand? Check out our guides on testing your bike’s balance and finding that perfect frame fit.
By getting a grip on fork rake, trail, wheelbase, and bottom bracket height, you’ll be better prepared to pick the right gravel bike for your journey. For more tips and brand breakdowns, swing by our bike brands comparison and specs showdown page. And if your wallet’s on your mind, take a look at our best time to buy guide so you don’t overspend.
Custom Bike Geometry Options
Custom bike geometry gives cyclists a chance to tweak their two-wheelers for a ride that’s just right. Here, we’ll dive into all things custom bike geometry, highlighting the tweaks you can make to bike dimensions and why rear hub spacing is a big deal.
Tailoring Bike Dimensions
When you go for a custom bike, you’re getting more than just a snazzy paint job – it’s about fitting the bike like a glove. Imagine a bike that’s made for your size, build, and riding style. Custom builders can switch frame angles, change tube lengths, and more – making the ride not just comfy but super efficient.
Here’s how you can play around with bike dimensions:
- Frame Size: Tailor this for just your height and leg length.
- Stack and Reach: Tweak these up-and-down and front-to-back distances for that just-right fit.
- Seat Tube Angle: Adjust it for plush comfort and better pedaling power.
- Head Tube Angle: Shift it for better control and smooth handling.
Custom set-ups are gold for folks needing specific tweaks in frame angles for their riding sweet spot. For all the nitty-gritty on sizing a custom bike frame, swing by our handy bike frame sizing guide.
Rear Hub Spacing Considerations
Let’s talk rear hub spacing – it’s kinda like the backbone of your bike’s vibe. It can make or break your bike’s performance and feel, changing angles and room for your cranks, which can shift how the bike rides.
| Rear Hub Spacing (mm) | Type of Bike | Performance Effect |
|---|---|---|
| 135 | Standard Road/MTB | Good ol’ trusty, adaptable set-up |
| 142 | Modern Road and Gravel | More solid, steadier overall |
| 148 | Boost MTB/Gravel | Extra sturdy with better control |
| 150 | Downhill/Freeride MTB | All the muscle for those wild rides |
These hubs can change your bike’s chainline, crucial for smooth shifting and keeping everything running cozy-like. Tweaking this needs smarts, though, to ensure your bike stays balanced.
When working on a custom ride, having a chat about rear hub spacing with your builder is key to getting the best performance from your bike. For more on how custom builds measure up against the standard lot, check out our compare bike specs article.
Whether you’re buying your first bike or looking for an upgrade, grasping these tech details can seriously step up your shopping game. Head over to our full bike buying guide for the scoop, and make sure to peep our bike warranty guide for some peace of mind with your new wheels.
Fine-Tuning Bike Geometry
Tweaking your bike’s setup can really spice up your rides. Let’s get into two crucial tweaks you might wanna check out.
Adjusting Fork Rake
Fork rake, sometimes called fork offset, is basically the gap between the front axle and an imaginary line slicing through your steering gear. Give that fork rake a tweak, and you’ll feel like you got a new ride. One way to do it? A thru-axle design with this nifty eccentric insert. It lets you shift the axle a bit, fine-tuning the rake.
Messing with fork rake affects:
- Stability: Pump up the rake, you may lose some trail, but gain a snappier response; sometimes too snappy, like your bike’s had too much coffee.
- Comfort: Dial down the rake to up that trail, giving you sluggish but rock-solid steering. Perfect when you’re clocking in those long-distance rides.
Wanna get into the nitty-gritty of bike handling for races, cruising to work, or hitting the trails? Check out our stuff on bike frame sizing and compare bike specs.
Ride Height and Center of Gravity
Ride height gets cozy with your bike’s balance and how it feels on the go, influenced by where your bottom bracket sits and crank length. Nail the right height and you’ll glide through speeds like butter (Tekne Cycling).
What shakes up ride height and balance?
- Bottom Bracket Height: A higher setup might make you feel steadier but less nimble on tight turns. Drop it a bit and get spin-happy at the risk of scraping pedals.
- Crank Length: How long your gig is can tweak those pedal strokes and up the coziness on marathon rides.
Here’s a cheat sheet on bottom bracket heights changing up bike vibes:
| Bottom Bracket Height | Stability | Agility | Pedal Clearance |
|---|---|---|---|
| High | Up | Down | More |
| Low | Down | Up | Less |
If you’re pimping your ride for specific terrains or styles, understanding this stuff is gold. Dive into bike fit and comfort with our how to test ride bike guide.
Focus on these details, and you’ll tailor that bike to ride like a glove. For exhaustive tips on setting up your ride, plus some killer buying guides, swing by the sections on bike brand reputation and bike maintenance plans.
